ENGWE X20
25km/h Triple Suspension Foldable E-bike
| Foldable: No |
Frequently Bought Together
3 year warranty
Free
Delivery protection
Free
PA66 handlebar phone holder — black
17,00 €
Bike lock EWLK33
25,00 €

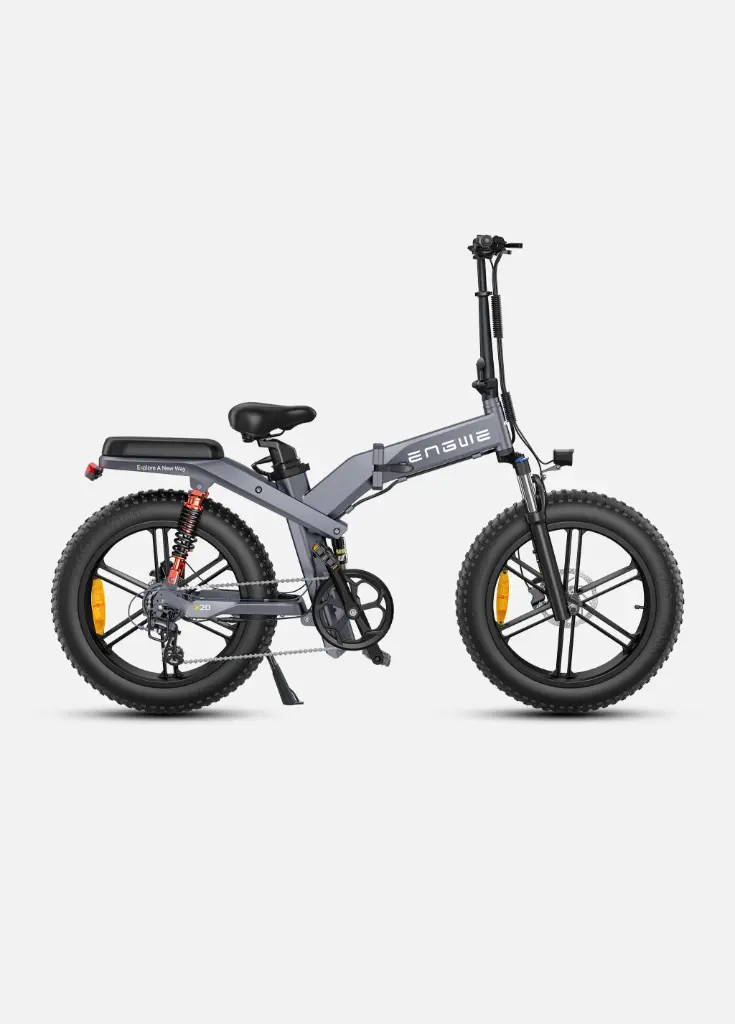

ENGWE X20 · Super E-bike
ENGWE X20 Super E-bike
A high-powered machine
Travel Without Range Anxiety
A Smooth Ride On Every Terrain
Triple Suspension
The ENGWE X Series offers 3x more powerful shock absorbance than an average e-bike. This is made possible with a triple shock absorbance system that includes a front hydraulic shock, a middle mechanical shock, and a rear air shock absorber.
Alloy Pedals & Cleats
Anti-Skid Cleats-Durable and Stable-Wider Pedal Area: 80mm
Aluminum Alloy Fram
High Strength-Light Weight-Antioxidant
Leather Seat
Height Adjustable-Max Comfortability-Max Range Up to 25cm
Hydraulic Disc Brakes
Front Brake&Rear Brake-Excellent Braking Power-Max Braking Distance: 12m
SHIMANO 8-Speed Gears
A SHIMANO derailleur delivers reliable, effortless, and accurate gear shifting on any terrain or gradient.
Keeping You Safe, Light The Way Ahead
High-brightness front LED light has a long range, without fear of the black night road.
Ride Smarter, Ride Safer
Bright pulsing rear indicators,so other road users know your next move.Keep you visible to all.
Size Guide:
Unfolded
| Rider Height | 5.5 (ft) -6.5 (ft) |
| Payload Capacity | 150 kg (330lbs) |
| Package Dimensions (LWH) | 158*35*87 cm |
| A--Height | 114.7 cm |
| B--Total Length | 196.1 cm |
| C--Reach | 41.1 cm |
| D--Standover Height | 76.1 cm |
| E--Wheelbase | 122.1 cm |
| F--Minimum Saddle Height | 93.8 cm |
| G--Maximum Saddle Height | 121.5 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Folded
| Folded Size | 110*72*120 cm |
| A--Height | 120 cm |
| B--Length | 110 cm |
| C--Width | 72 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
What's in the Box?
| X26 E-bike | *1 |
| Batteries | 48V10Ah Lithium-Ion Battery *1 |
| 48V19.2Ah Lithium-Ion Battery *1 | |
| Battery Charger | *1 |
| Assembly Tools | *1 |
| Pedals | *2 |
| Handle Bars Shipped Installed On Bike | *1 |
| User Manual | *1 |
| Display Manual | *1 |
| Tool Kit | *1 |
Please note: The product you receive is based on the option you selected to order.
Size Guide:
Unfolded
| Rider Height | 5.6 (ft) -6.4 (ft) |
| Payload Capacity | 150 kg(330lbs) |
| Package Dimensions (LWH) | 162*32*79 cm |
| A--Height | 108 cm |
| B--Total Length | 187.4 cm |
| C--Reach | 41.2 cm |
| D--Standover Height | 73.6 cm |
| E--Wheelbase | 118.4 cm |
| F--Minimum Saddle Height | 90.2 cm |
| G--Maximum Saddle Height | 121.5 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Folded
| Folded Size | 106*74*107 cm |
| A--Height | 107 cm |
| B--Length | 106 cm |
| C--Width | 74 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
What's in the Box?
| X24 E-bike | *1 |
| Batteries | 48V10Ah Lithium-Ion Battery *1 |
| 48V19.2Ah Lithium-Ion Battery *1 | |
| Battery Charger | *1 |
| Assembly Tools | *1 |
| Pedals | *2 |
| Handle Bars Shipped Installed On Bike | *1 |
| User Manual | *1 |
| Display Manual | *1 |
| Tool Kit | *1 |
Please note: The product you receive is based on the option you selected to order.
Size Guide:
Unfolded
| Rider Height | 5.4 (ft) -6.2 (ft) |
| Payload Capacity | 150 kg (330lbs) |
| Package Dimensions (LWH) | 152*32*73 cm |
| A -- Height | 113.5 cm |
| B -- Total Length | 170.5 cm |
| C -- Reach | 43.7 cm |
| D -- Standover Height | 63.3 cm |
| E -- Wheelbase | 112.5 cm |
| F -- Minimum Saddle Height | 84.5 cm |
| G -- Maximum Saddle Height | 106 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
Folded
| Folded Size | 103*68*79 cm |
| A--Height | 79 cm |
| B--Length | 103 cm |
| C--Width | 68 cm |
Please note: There may be a difference of 0~5 cm between measured and actual data.
What's in the Box?
| X20 E-bike | *1 |
| Batteries | 48V7.8Ah Lithium-Ion Battery *1 |
| 48V14.4Ah Lithium-Ion Battery *1 | |
| Battery Charger | *1 |
| Assembly Tools | *1 |
| Pedals | *2 |
| Handle Bars Shipped Installed On Bike | *1 |
| User Manual | *1 |
| Display Manual | *1 |
| Tool Kit | *1 |
Please note: The product you receive is based on the option you selected to order.
FAQ
Q1: Shipping information:
In stock: shipped in 1–2 working days from our warehouse in Spain (up to 8 days if it ships from another warehouse). Free shipping from €500 to mainland Spain and the Balearic Islands; below that, €5.
Pre Sale: Please refer to the product page for detailed shipping times on pre-order items.
No Stock: Please refer to the product page for detailed shipping times on out-of-stock items.
Pickup at our Valencia and Barcelona stores: free with the bike in its box; €50 (VAT included) assembled and adjusted.
Returns: 30 calendar days; return shipping is paid by the buyer unless the product is faulty or the error is ours.
Full shipping and returns conditions in our Terms and Conditions.
Q2: X20 User Manual
Please click here to view the X20 User Manual.
Q3: Unboxing and general bike setup:
How to restore the X20 to factory default
X20 Throttle deactivation
How to switch between KM and Miles
Q4: Where and how to buy the parts that you need:
You can buy original spare parts in our online store, in the E-bike spare parts category, or by writing to info@engwespain.es / +34 960 730 787.
| General | |
| Model | ENGWE X20 |
| Gross weight (package, dual battery) | 46.32 kg (102.11 lbs) |
| Max load | 150 kg (330 lbs) |
| Max speed | 25 km/h |
| Rider height | 165 - 189 cm (5.4 - 6.2 ft) |
| Range (ECO Mode) | 150 km |
| Foldable | Yes |
| Electrical system | |
| Motor | 250W |
| Max torque | 65 Nm |
| Battery | 48V 7.8Ah / 48V 14.4Ah (dual battery option, 22.2Ah total) |
| Charging time | About 7 hours |
| Components | |
| Frame | aluminum alloy (high strength, lightweight, corrosion-resistant) |
| Suspension | Triple (front hydraulic shock + central mechanical shock + rear air shock) |
| Tires | 20 x 4.0 (fat tires) |
| Brakes | Hydraulic disc (front & rear), max braking distance 12 m |
| Drivetrain | Shimano, 8-speed |
| Pedals | Non-slip alloy pedals & cleats, 80 mm pedal area |
| Saddle | Leather, adjustable height (up to 25 cm of travel) |
| Dimensions | |
| Total length (unfolded) | 170.5 cm |
| Wheelbase | 112.5 cm |
| Standover height | 63.3 cm |
| Folded (L×W×H) | 103 × 68 × 79 cm |
